Practice management integration

Practice management integration (an MVP)

This guide explains how an MVP integration with a practice management solution might look like.

Overview

This guide outlines the recommended MVP (Minimum Viable Product) integration between practice management systems and Xama’s AML platform. The integration provides effective AML oversight while avoiding unnecessary complexity and maintenance overhead.

Integration Philosophy

The MVP integration follows these key principles:

Authentication via OAuth2 - Users link their Xama account by recording OAuth2 credentials in your application
Client-level linking only - Link clients between systems, exclude contact-level linking to avoid complexity
Detailed work in Xama - Users perform all detailed AML work within Xama
Status overview in your app - Display AML progress and risk assessment status within your application
Risk assessment as primary control - Focus on the client risk assessment as the key compliance indicator

This approach provides good oversight without creating a deep integration requiring constant maintenance as AML regulations evolve.

Prerequisites

Before starting the integration, ensure you have:

Completed the Authentication guide and obtained your OAuth2 credentials
A Xama account created at https://platform.xamatech.com
Your Client ID from the Xama platform
Familiarity with the Xama training materials (available in the platform’s training center)

Integration Workflow

1. Authentication Setup

Users must first connect your application to their Xama account.

In your application:

Provide a settings page for AML/Xama integration
Request the user’s Xama OAuth2 credentials (Application ID and Secret)
Store these credentials securely in your application
Obtain and manage access tokens as described in the authentication guide

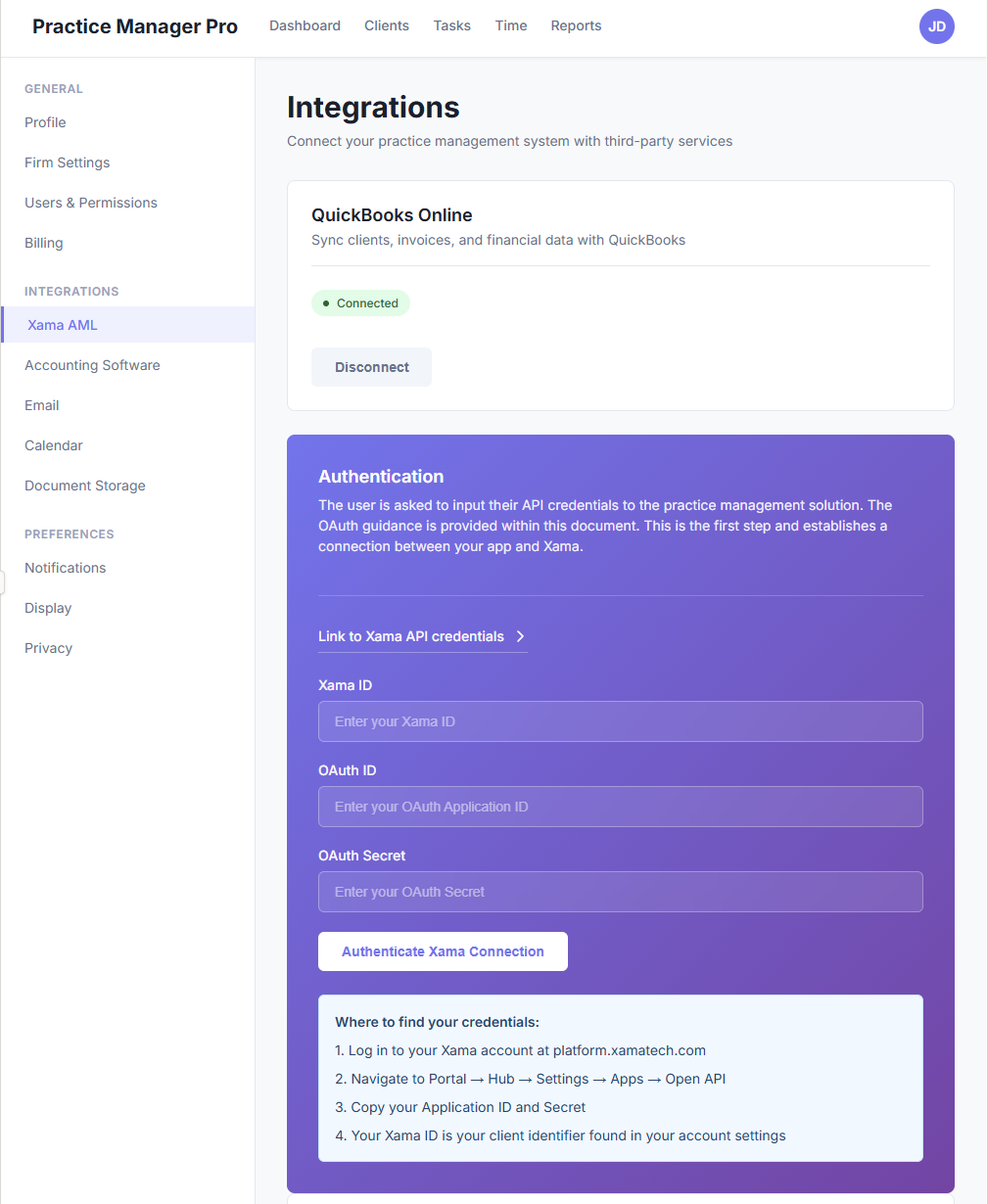

Example authentication screen

2. Client Record AML View

Within each client record in your application, create an AML section or tab where users can:

Link to an existing Xama client
Create a new Xama client
View risk assessment status
Navigate directly to the Xama platform for detailed work

Prompt the user to link a client to Xama

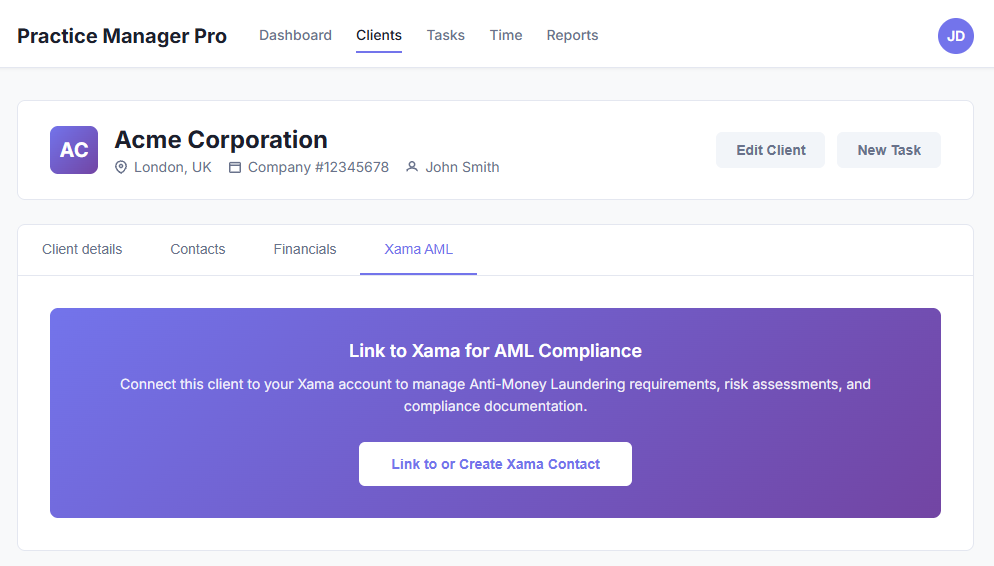

Example Xama AML tab on client record

API Endpoints and Implementation

Client Search

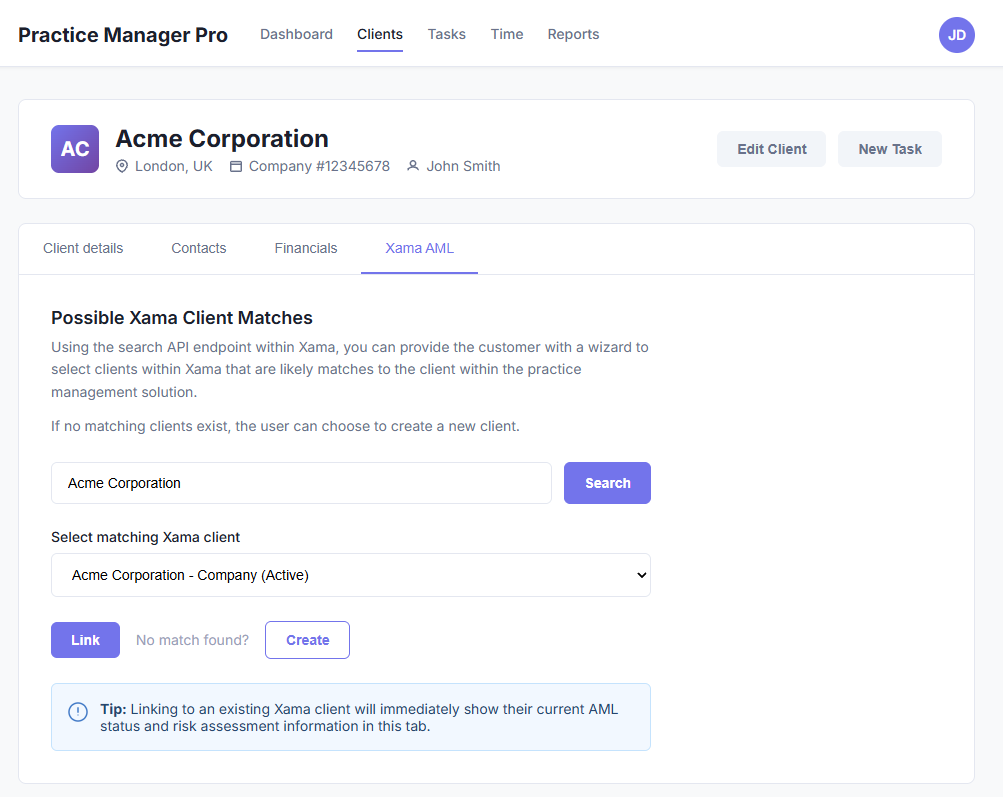

Use the search endpoint to help users find and link existing Xama clients.

Endpoint

GET /clients/{clientId}/search

Request Example

curl -X GET "https://xamahub.xamatech.com/api/clients/{clientId}/search?query=Cooper" \
  -H "Accept: application/json" \
  -H "Authorization: Bearer {access_token}"

Query Parameter

Parameter	Type	Description
`query`	string	Search term (email, first name, last name, or client name)

Response Example

{
    "items": [
        {
            "account_id": "c0faff70-785a-11f0-a2c1-8f30eeaee00b",
            "account_name": "Coopers Corp",
            "account_status": "ACTIVE",
            "account_type": "COMPANY",
            "email": "jacques@xamatech.com",
            "entity": "CONTACT",
            "id": "c0faff71-785a-11f0-a2c1-8f30eeaee00b",
            "name": "Yvette Cooper",
            "replica_mode": "REPLICA",
            "status": "ACTIVE",
            "type": "PRIMARY"
        },
        {
            "entity": "XAMA_HUB_ACCOUNT",
            "id": "3e3fe850-4765-11f0-bfb7-6bd68cd9e41f",
            "name": "Yvette Cooper",
            "status": "ACTIVE",
            "type": "INDIVIDUAL"
        }
    ],
    "page": 1,
    "page_size": 100,
    "result_size": 2
}

Implementation Notes:

Filter results to show only XAMA_HUB_ACCOUNT entities (these represent clients)
Ignore CONTACT entities in search results
Present matching accounts in a selection wizard for the user
Store the selected id as the link between your client and the Xama client

Create Client and Primary Contact

If no matching client exists in Xama, allow users to create a new one.

Endpoint

POST /clients/{clientId}/accounts

Request Example

curl -X POST "https://xamahub.xamatech.com/api/clients/{clientId}/accounts" \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer {access_token}" \
  -d '{
    "name": "Acme Corporation",
    "type": "COMPANY",
    "reg_number": "01234567",
    "metadata": {
      "external_reference": "PM-12345"
    },
    "primary_contact": {
      "first_name": "John",
      "middle_name": "",
      "last_name": "Smith",
      "email": "john.smith@acme.com",
      "phone": "+44 20 1234 5678",
      "date_of_birth": "1980-05-15",
      "driving_license_expiry_date": "",
      "driving_license_number": "",
      "passport_number": "",
      "passport_expiry_date": "",
      "primary_address": {
        "street": "123 High Street",
        "postcode": "SW1A 1AA",
        "city": "London",
        "country_code": "GB",
        "type": "PRIMARY"
      }
    }
  }'

Request Parameters

Field	Type	Required	Description
`name`	string	Yes	Client/company name
`type`	string	Yes	`COMPANY` or `INDIVIDUAL`
`reg_number`	string	No	Company registration number
`metadata.external_reference`	string	No	Your system’s client ID (recommended for mapping)
`primary_contact`	object	Yes	Primary contact details

Primary Contact Fields

Field	Type	Required	Description
`first_name`	string	Yes	Contact’s first name
`last_name`	string	Yes	Contact’s last name
`email`	string	Yes	Contact’s email address
`date_of_birth`	string	No	Format: YYYY-MM-DD
`phone`	string	No	Contact phone number
`primary_address`	object	No	Primary residential address

Implementation Notes:

Use metadata.external_reference to store your system’s client ID for easy cross-referencing
Store the returned id from the response as the link to the Xama client
Only the primary contact is typically synced during initial creation
Additional contacts can be added later if needed for beneficial ownership

Create Additional Contacts (Optional)

Add additional contacts to a Xama client account when needed for beneficial ownership purposes.

Endpoint

POST /clients/{clientId}/accounts/{accountId}/contacts

Request Example

curl -X POST "https://xamahub.xamatech.com/api/clients/{clientId}/accounts/{accountId}/contacts" \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer {access_token}" \
  -d '{
    "first_name": "Jane",
    "middle_name": "",
    "last_name": "Doe",
    "email": "jane.doe@example.com",
    "phone": "+44 20 9876 5432",
    "primary_address": {
      "street": "456 Oxford Street",
      "postcode": "W1D 1BS",
      "city": "London",
      "country_code": "GB",
      "type": "PRIMARY"
    }
  }'

Important: Most integrations do not need to sync additional contacts automatically. In many cases, only syncing the primary contact during initial client creation is sufficient. Determining beneficial ownership should be completed as part of the AML process within Xama.

Understanding Xama’s Data Model

Xama manages clients and contacts differently than typical CRM or practice management systems:

Why Contact Linking is Excluded

Different data purposes - Xama stores residential addresses and identity verification data, while PM systems store operational contact details
Data divergence - AML and operational data naturally diverge over time
Data sensitivity - AML information is highly sensitive; keeping it separate improves GDPR compliance and access control
AML workflow requirements - Beneficial ownership determination should occur during the AML process, not be pre-populated from operational systems

Recommended Approach

Create or link the client entity only
Sync the primary contact during initial creation
Allow users to add additional contacts within Xama as part of the AML workflow
Do not maintain ongoing contact synchronisation

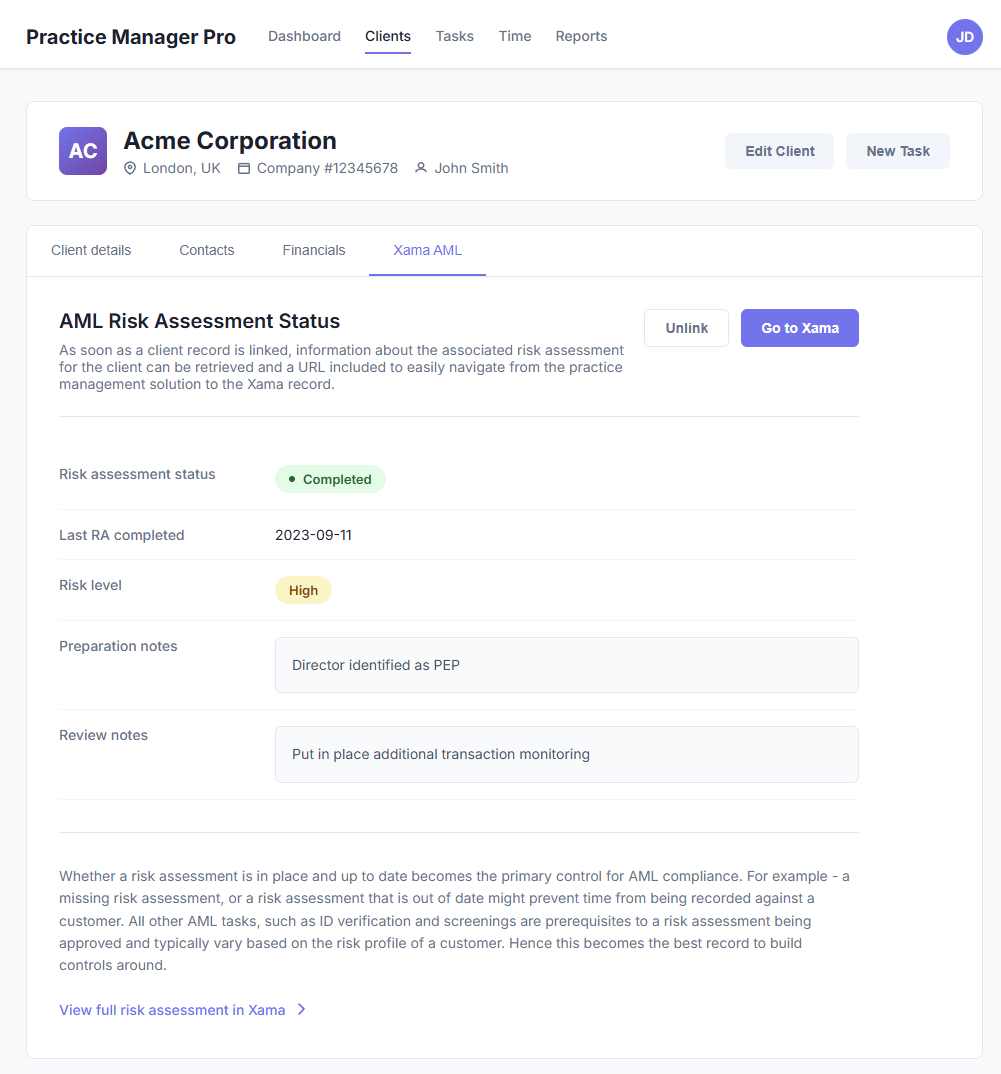

Displaying Risk Assessment Status

Once a client is linked, display risk assessment information in your application’s AML section.

Retrieve Risk Assessments

Endpoint

GET /clients/{clientId}/accounts/{accountId}/risk-assessments

Request Example

curl -X GET "https://xamahub.xamatech.com/api/clients/{clientId}/accounts/{accountId}/risk-assessments" \
  -H "Accept: application/json" \
  -H "Authorization: Bearer {access_token}"

Response Example

{
    "items": [
        {
            "completed_at": "2025-11-28",
            "created_at": "2025-11-11T10:29:26.043Z",
            "id": "4c004970-bee9-11f0-bd00-3d412f3419a1",
            "notes": "These are assessment notes",
            "prepared_by": "Jacques",
            "review_notes": "These are review notes",
            "reviewed_by": "David",
            "risk_level": "NORMAL",
            "status": "IN_PROGRESS",
            "updated_at": "2025-11-11T10:29:50.496Z"
        },
        {
            "completed_at": "2025-11-11",
            "created_at": "2025-11-11T10:26:13.597Z",
            "id": "d94e1ab0-bee8-11f0-84be-f7ee26e54ed8",
            "risk_level": "HIGH",
            "status": "COMPLETED",
            "updated_at": "2025-11-11T10:27:25.230Z"
        },
        {
            "completed_at": "2025-06-12",
            "created_at": "2025-06-12T08:00:03.836Z",
            "id": "3f4694d0-4763-11f0-9b61-1dab7768cf6e",
            "risk_level": "HIGH",
            "status": "COMPLETED",
            "updated_at": "2025-09-15T16:40:06.611Z"
        }
    ],
    "page": 1,
    "page_size": 100,
    "result_size": 3
}

Response Fields

Field	Type	Description
`id`	string	Unique risk assessment identifier
`status`	string	`IN_PROGRESS`, `IN_REVIEW`, or `COMPLETED`
`risk_level`	string	`LOW`, `NORMAL`, `HIGH`, or `VERY_HIGH`
`completed_at`	string	Date assessment was completed (YYYY-MM-DD)
`prepared_by`	string	Name of preparer
`reviewed_by`	string	Name of reviewer
`notes`	string	Assessment notes
`review_notes`	string	Review notes

Identifying the Current Risk Assessment

Critical: Only risk assessments with status: "COMPLETED" represent approved assessments.

To find the current risk assessment:

Filter for assessments with status: "COMPLETED"
Sort by completed_at date (descending)
The most recent completed assessment is the current one

Example Logic:

const completedAssessments = assessments.items.filter(a => a.status === "COMPLETED");
const currentAssessment = completedAssessments.sort((a, b) =>
    new Date(b.completed_at) - new Date(a.completed_at)
)[0];

Risk Assessment as a Control Point

The risk assessment status is the primary control for AML compliance. Consider using it to:

Prevent time recording against clients with missing or outdated assessments
Display warnings when assessments are approaching review dates
Block certain operations until AML compliance is confirmed
Generate compliance reports based on assessment status

All other AML tasks (ID verification, screenings) are prerequisites to risk assessment approval and vary based on client risk profile, making the risk assessment the ideal control point.

Deep Link to Xama

Provide direct navigation to the Xama client record:

https://platform.xamatech.com/portal/hub/clients/{accountId}

This allows users to seamlessly transition from your application to Xama for detailed AML work.

Webhooks for Real-Time Updates

Instead of polling for changes, use webhooks to receive real-time notifications when risk assessments are updated.

Create a Webhook Subscription

Endpoint

POST /clients/{clientId}/subscriptions

Request Example

curl -X POST "https://xamahub.xamatech.com/api/clients/{clientId}/subscriptions" \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer {access_token}" \
  -d '{
    "callback_url": "https://your-app.com/webhooks/xama",
    "type": "WEBHOOK",
    "config": {
      "api_secret": "your-webhook-secret",
      "entities": [
        {
          "entity": "ACCOUNT",
          "events": [
            "RISK_ASSESSMENT_CREATED",
            "RISK_ASSESSMENT_IN_REVIEW",
            "RISK_ASSESSMENT_COMPLETED",
            "RISK_ASSESSMENT_DELETED"
          ]
        }
      ]
    }
  }'

Configuration Parameters

Field	Type	Description
`callback_url`	string	Your webhook endpoint URL
`type`	string	Must be `WEBHOOK`
`api_secret`	string	Secret for webhook signature verification
`entities`	array	List of entity types and events to monitor

Webhook Events for Risk Assessments:

RISK_ASSESSMENT_CREATED - New risk assessment started
RISK_ASSESSMENT_IN_REVIEW - Assessment submitted for review
RISK_ASSESSMENT_COMPLETED - Assessment approved and finalized
RISK_ASSESSMENT_DELETED - Assessment removed

Implementation Notes:

Verify webhook signatures using the api_secret you provided
Update your local cache/database when receiving webhook notifications
Handle webhook retries gracefully (implement idempotency)
Respond with 2xx status code to acknowledge receipt
